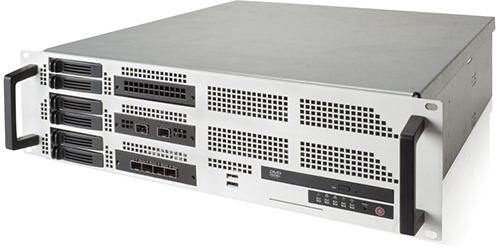

3U SETAC Pyramid 3U

NetFlex ELX Server Family

Pyramid’s NetFlex ELX family is an appliance platform, covering virtually every imaginable application from a simple 1U Webserver to 2U and 3U enterprise appliances.
Identical materials and dimensions ensure a consistent harmonious appearance. Printed logos or individual color schemes offer the real appliance look and feel.

NetFlex ELX is tailored to support Silicom SETAC modules, enabling the ultra-simple integration of high-performance, front-access network solutions.

Various options, for mixed integration also, like 1GbE, 10GbE, Copper, Fiber and Bypass modules exist.

NetFlex ELX supports also 8-port Setac modules and offers the widest port variability on the market.

SETAC modules can be exchanged quickly and easily using an ejection lever.

3U Pyramid SETAC

3U SETAC Appliance Pyramid based

Key Features:

  • Complete family of appliance platforms from 1U to 3U
  • Full integration of SETAC-technology (even 8-port modules)
  • Free choice of mainboard manufacturer and form factor (µATX to eATX)
  • Solution with the maximum port density on the market
  • Co-ordinated chassis design and dimensions

3U Pyramid SETAC

3U SETAC Appliance Pyramid based

General Technical Specifications

NetFlex ELX 3USpecifications
MaterialSteel
Front bezelSteel
Dimensions (WxHxD)483 x 133 x 458mm (3U Rackmount, short),
483 x 133 x 633mm (3U Rackmount, long)
Type3U Rackmount
BrandingFree styling of frontbezel
Power Supplysingle, hot-plug redundant
Mainboardmini-ITX, ATX, eATX (long version only)
Front modulesmax. 7 modules
Front bezels 3U RackmountLCD, LED, DVD, USB, 3.5" - slot, 2.5" - mobile rack, max.7 x SETAC (Front NICs), card reader
Expansion Slots7 x PCI/PCI-E
Cooling3 x 120mm or 4 x 80mm fan PWM, 2 x 60mm fan PWM (rear), up to 3 x 3.5" - HDD/fan module
Optional accessorySD card reader (zero conf), changeable dust filter, chassis intrusion detector, pci-latch, 60mm fan, 80mm fan, telescopic rack, SETAC modules (up to 8-ports per module - GbE, 10GbE, Fiber, Bypass...)

3U Pyramid SETAC

3U SETAC Appliance Pyramid based

P/N

Description

FGPYVARIOF00012NetFlex ELX 3U short (ATX)
FGPYVARIOF00013NetFlex ELX 3U long (eATX)
