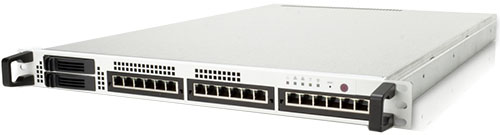

1U SETAC Pyramid 1U

VarioFlex Server Family

Pyramid’s VarioFlex family is an appliance platform, covering virtually every imaginable application from a simple 1U Webserver to 2U and 3U enterprise appliances.
Identical materials and dimensions ensure a consistent harmonious appearance. Printed logos or individual color schemes offer the real appliance look and feel.

VarioFlex is tailored to support Silicom SETAC modules, enabling the ultra-simple integration of high-performance, front-access network solutions.

Various options, for mixed integration also, like 1GbE, 10GbE, Copper, Fiber and Bypass modules exist.

VarioFlex supports also 8-port Setac modules and offers the widest port variability on the market.

SETAC modules can be exchanged quickly and easily using an ejection lever.

1U Pyramid SETAC

1U SETAC Appliance Pyramid based

Key Features:

  • Complete family of appliance platforms from 1U to 3U
  • Full integration of SETAC-technology (even 8-port modules)
  • Free choice of mainboard manufacturer and form factor (µATX to eATX)
  • Solution with the maximum port density on the market
  • Co-ordinated chassis design and dimensions

1U Pyramid SETAC

1U SETAC Appliance Pyramid based

General Technical Specifications

VarioFlex 1U Specifications
Material Steel
Front bezel Steel
Dimensions (WxHxD) 483x 44 x 458mm (short), 483 x 44 x 633mm (long)
Type 1U Rackmount
Branding Free styling of frontbezel
Power Supply single, hot-plug redundant
Mainboard mini-ITX, ATX, eATX (long version only)
Front modules max.4
Front options LED, LCD, DVD, USB, 2.5″- mobile rack, max 4 SETAC (Front NICs), card reader 3.5″-slot
Expansion Slots 1 X PCI/PCI-E
Cooling 5 x 40mm fans PWM
Optional accessory SD card reader (zero conf), changeable dust filter, 40mm fans, telescopics rails, SETAC modules (up to 8-Ports per Module – GbE, 10GbE, Fiber, Bypass…)

1U Pyramid SETAC

1U SETAC Appliance Pyramid based

P/N

Description

FGPYVARIOF10005 VarioFlex 1U short (ATX)
FGPYVARIOF10006 VarioFlex 1U long (eATX)
