SETAC Supermicro

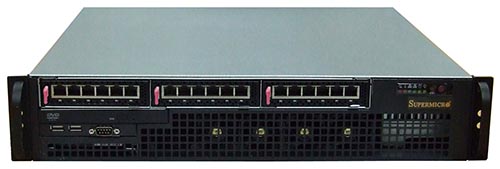

Supermicro 2U825

Supermicro 2U825 SETAC Solution

Silicom SETAC introduces a unique new concept to the appliance industry: the use of a simple kit to allow branded, high-technology servers to be configured as hardware appliances.

By using Silicom SETAC with a standard server, you create an ideal network appliance that delivers the best of both worlds: server-grade reliability and front-end access, together with field-replaceable architecture and a stable state-of-the-art technology environment.

Supermicro 2U825

Supermicro 2U825 SETAC Solution

Key Features:

  • Complete family of appliance platforms from 1U to 3U
  • Full integration of SETAC-technology
  • Solution with the maximum port density on the market
  • Supermicro chassis design and dimensions

Supermicro 2U825

Supermicro 2U825 SETAC Solution

General Technical Specifications

2U Specifications
Dimensions (WxHxD) 17.2″ (437) X 3.5″ (89mm) X 17.7″ (450mm)
Type 2U Rackmount
Power Supply 700W (1+1) Redundant w/PFC
Mainboard mini-ITX, ATX, eATX (long version only)
Front Bays x3 max
Front Modules 7x low-profile expansion slots

Supermicro 2U825

Supermicro 2U825 SETAC Solution

P/N

Description

Notes

SA2UI-X4B4-R 2U Server to Quad Express Module I/O and Quad SAS HDD I/O Appliances Converter (Entire Kit) Includes:
1 x SA2U1-B2S4-R
4 x SA2U1-AB-R
4 x TWINAX PCI Express cabling
SA2U1-AB-R 2U PCI Express Host Connector Interface Adapter PCI Express x8 Host Connector
SA2U1-X3B4-R 2U Server to Triple Express Module I/O and Quad SAS HDD I/O Appliances Converter (Entire Kit) Include:
1 x SA2U1-B2S4-R
3 x SA2U1-AB-R
3 x TWINAX PCI Express cabling
SA2U1-B3S4-R 2U Backplane with Triple Express Module I/O and Quad SAS HDD I/O
SA2U1-AB-R 2U PCI Express Host Connector Interface Adapter PCI Express x8 Host Connector
SA2U1-X2B4-R 2U Server to Dual Express Module I/O and Quad SAS HDD I/O Appliances Converter (Entire Kit) Included:
1 x SA2U1-B2S4-R
2 x SA2U1-AB-R
2 x TWINAX PCI Express cabling
SA2U1-B2S4-R 2U Backplane with Dual Express Module I/O and Quad SAS HDD I/O
SA2U1-AB-R 2U PCI Express Host Connector Interface Adapter PCI Express x8 Host Connector
