Products

Silicom Edge Networking Division

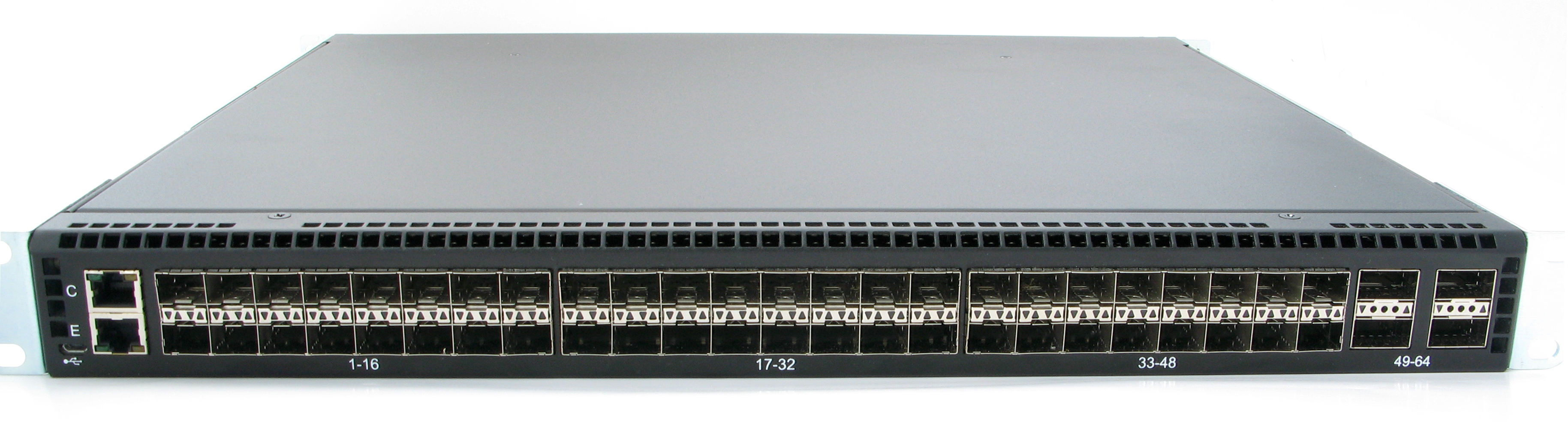

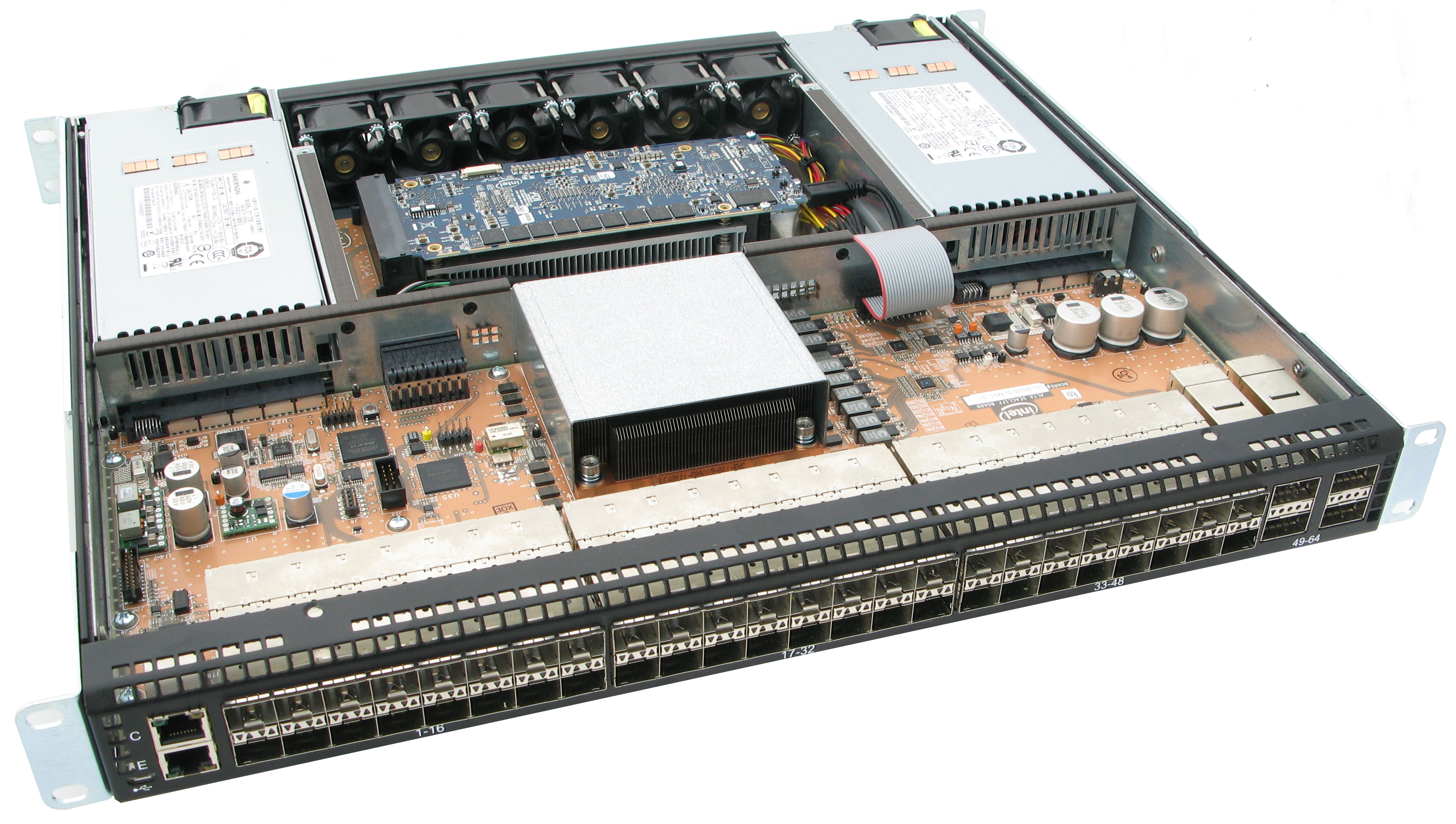

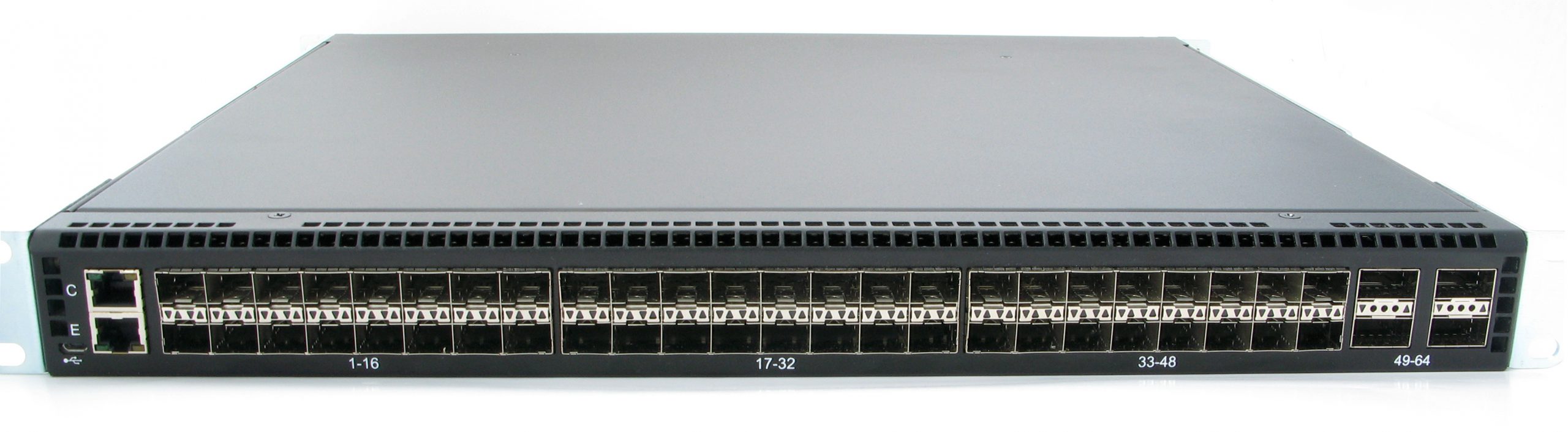

Seacliff Trail Data Center Switch

Intel FM6364 Data Center Switch + Integrated Xeon E3 Microserver with 48x 10G + 4x 40G Ethernet

  • Intel FM6364 Switch + Integrated Xeon E3 Microserver
  • 48x 10G + 4x 40G Ethernet
  • Low-Latency, Highly Programmable FlexPipe Architecture
  • Intel Open Network Platform Software Support
Seacliff Trail Data Center Switch
Silicom Seacliff Trail Data Center Switch

Seacliff Trail Data Center Switch

Intel FM6364 Data Center Switch + Integrated Xeon E3 Microserver with 48x 10G + 4x 40G Ethernet

General Technical Specifications

Form Factor: 19″ 1U rackmount, 24″ deep
Chipset: Intel Alta FM6364
Intel Xeon E3-1105C
Intel Cave Creek 8920 QuickAssist Accelerator
Ethernet: 48x 10Gb SFP+
4x 40Gb QSFP+
Management Interface: 10/100/1000 Base-T
RS-232
Power: Dual Redundant 460W Power Supplies
90-254VAC 50/60 Hz
DC input options available
Operating Temperature: 0-40C
Certifications: FCC Part 15
RoHS/WEEE

Seacliff Trail Data Center Switch

Intel FM6364 Data Center Switch + Integrated Xeon E3 Microserver with 48x 10G + 4x 40G Ethernet

P/N

Description

80400-0054-G01 – Seacliff Trail System
– Intel FM6364 switch
– 48x 10Gb SFP+, 4x 40Gb QSFP+
– Intel Xeon E3-1105C CPU
– Intel 8920 QuickAssist Accelerator
– Dual redundant 460W power supplies, AC input
– 1U 19″ Rackmount enclosure
