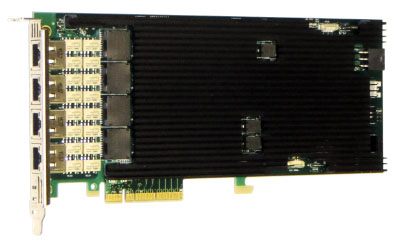

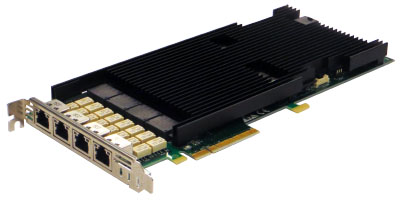

PE310G4DBIR-T Intel® FM10420 Based

Quad Port Copper 10 Gigabit Ethernet PCI Express Content Director Server Adapter

Silicom’s 10 Gigabit Ethernet PCI Express content aware director Bypass server adapters is designed for servers and high-end appliances. The Silicom content aware director server adapter is designed with an on board smart routing architecture that enables packets to be redirected or dropped based on defined rules.

The Silicom’s 10 Gigabit Ethernet content aware packet director reduces host system process since only packets that are defined to be targeted to the host systems are routed to the host; other packets can be routed to the other port or can be dropped by the content aware hardware routing architecture.

The Silicom’s 10 Gigabit Ethernet content aware packet director is targeted to network applications that needs to process, monitor or bypass packets based on defined rules. The adapter supports three main modes of operation: Content Aware Bypass, Content Aware TAP and content Aware filtering NIC.



Content Aware Bypass

Silicom’s 10 Gigabit Ethernet content aware director provides intelligent packet redirection capability where rules specify which packets are directed to the host system and which packets are directed to the other port (Bypass).

Content Aware TAP

Silicom’s 10 Gigabit Ethernet content aware director provides intelligent packet redirection capability where all packets are directed to the other port (Bypassed) and rules specify which packets are copied to the host system ( TAP).

Content Aware Filtering NIC

Silicom’s 10 Gigabit Ethernet content aware provides intelligent packet redirection capability where rules specify which packets are directed to the host or dropped.

The Silicom 10 Gigabit Ethernet PCI Express content director server adapter is based on Intel FM10420 Ethernet controller and a L3 switch router. The Silicom’s 10 Gigabit Ethernet PCI Express adapter is based on standard L2 driver and with the content director engine reduces CPU host system processing.

The Silicom 10 Gigabit Ethernet PCI Express content aware server adapter offers simple integration into any PCI Express X8 to 10Gigabit Network.

PE310G4DBIR-T Intel® FM10420 Based

Quad Port Copper 10 Gigabit Ethernet PCI Express Content Director Server Adapter

Content Aware Director:

  • Provides intelligent packet redirection capability where rules specify which packets are directed to the host system and which packets are directed to the other port (Bypass).
  • Provides intelligent packet redirection capability where all packets are directed to the other port (Bypassed) and rules that specify which packets are copied to the host system ( TAP).
  • Provides intelligent packet filtering / drop capability where rules specify which packets are directed to the host or dropped.
  • Provides redirection rules that can be defined using source IP/ destination IP / Source Port / Destination Port / VLAN tuples.
  • Redirection and packet filtering / drop are performed by the hardware itself in wire speed and do not require any software and CPU host system power processing.
  • Intelligent redirect mechanism is controllable via software.
  • Intelligent routing mechanism is controllable via software

Bypass / Disconnect:

  • Bypass / Disconnect Ethernet ports on Power Fail, System Hangs or Software Application Hangs.
  • Software programmable Bypass, Disconnect or Normal Mode.
  • On Board Watch Dog Timer (WDT) Controller.
  • Software programmable time out interval.
  • Software Programmable WDT Enable / Disable counter.
  • Software programmable Bypass Capability Enable / Disable.
  • Software Programmable Disconnect Capability Enable / Disable.
  • Software Programmable mode (Bypass, Normal or Disconnect mode) at Power up.
  • Software Programmable mode (Bypass, Normal mode) at Power off.
  • Independent Bypass operation in every two ports.
  • Emulates standard NIC

Copper 10 Gigabit Ethernet 10GBASE-T:

  • Integrated 10 Gigabit Copper PHY supports 10GBASE-T, 1000 BASE- T and 100BASE- TX
  • Triple speed 10Gbps (10GBase-T), 1000Mbps (1000Base-T) and 100 Mbps (100Base-T)
  • RJ-45 connector supports CAT 6A, CAT7 cable

Common Key features:

  • Host Interface:
    • PCI Express X8 lane
    • Support PCI Express Base Specification Revision 3.0, 8GT/s, 5GT/s or 2.5GT/s
    • SR-IOV enabled to expose to 4 Virtual Functions (VF)
  • Intel FM10420 Features:
    • Single-element 4MB shared memory
    • L2/L3/L4/OpenFlow forwarding & ACLs
    • Stateless load balancing to CPUs
    • Datacenter Bridging (lossless Ethernet)
    • 32K 40-bit TCAM entries
    • 16K MAC & NextHop tables
    • Up to 300Gbps High-bandwidth CPU interface
    • 2x 50Gbps 8-lane PCIe interfaces
    • 4x 25Gbps 4-lane PCIe interfaces
    • Up to 8 25G/10G/2.5G/1G ports
    • Up to 2 40G (4 x 10G)
    • Up to 2 100G (4 x 25G)
    • 300ns network latency (100GbE)
    • 1000nS host-network latency
  • LAN Features:
  • 256 queues per PCIe x8 interface
  • SR-IOV (64 VFs per PCIe x8 interface)
  • IP/TCP/UDP checksum
  • Receive side scaling (RSS)
  • TCP segmentation offload (TSO/LSO)
  • LEDs indicator for link/Activity

PE310G4DBIR-T Intel® FM10420 Based

Quad Port Copper 10 Gigabit Ethernet PCI Express Content Director Server Adapter

Bypass Specifications:

WDT Interval (Software Programmable):3,276,800 mSec (3,276.8 Sec): Maximum
100 mSec ( 0.1 Sec) : Minimum
WDT Interval = (2^wdt_interval_parameter)*(0.1) sec.
wdt_interval_parameter: { Valid Range: 0-15}

- Copper 10 Gigabit Ethernet Technical Specifications - (10GBASE-T):

IEEE Standard / Network topology:Copper 10Gigabit Ethernet, 10GBASE-T
Gigabit Ethernet, 1000Base-T
100 Mb Ethernet : 100BASE- TX
Data Transfer Rate:20 Gb/s, 2000Mb/s and 200 Mb/s in full duplex mode per port
Cables and Operating distance:
Up to:
100Base-Tx Category 5 maximum 50m1
1000Base-T Category 5E maximum 50m1
10GBase-T Category 6A,7 maximum 50m2
1. 1Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3-2005 standard
2. 2Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3an standard

- Operating Systems Support:

Operating system support:Linux

- PE310G4DBIR-T General Technical Specifications:

Interface Standard:PCI-Express Base Specification Revision 3.0(8 GTs)
Board Size:Standard height long add-in card 241.30mm X 110.13mm (9.5”X 4.336”)
PCI Express Card Type:X8 Lane
PCI Express Voltage:+3.3V ±9%,
+12V ± 8%
External Voltage from external PW jack:+12V ± 8%
PCI Connector:Gold Finger: X8 Lane
Controller:Intel FM10420
Holder:Metal Bracket
Operating Humidity:0%–90%, non-condensing
Operating Temperature:0°C – 40°C (32°F - 104°F), Air flow requirement 200FLM
Storage:-40°C – 65°C (40°F - 149°F)
EMC Certifications:FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

- PE310G4DBIR-T LEDs/ Connectors Specifications:

LEDs:(2) LED per port
Speed / Bypass / Disconnect(Left):
Link of 1Gb/s: Turns on link (Yellow)
Link of 10Gb/s: Turns on link (Green)
Bypass: Blink (Green) on Bypass
Disconnect: Blink (Yellow)
ACT(Right) :
Blinks on activity (Green)
LEDs location:LEDs are located in the RJ45 connector port
Connector:(4) Shielded RJ-45



Functional Description

Director Director - Content Aware Bypass

Silicom’s 10 Gigabit Ethernet content aware director Provides intelligent packet redirection capability where rules specify which packets are directed to the host system and which packets are directed to the other port (Bypass).

DBI1

Figure 1: Content Aware Bypass Functional Block Diagram

Figure 1 illustrates functional block diagram of content aware Bypass:
Packets received in port A and meet rule are directed to port B, other packets are directed to port C (Bypass).

Packets received in port C and meet rule are directed to port D, other packets are directed to port A (Bypass).





Director Content Awar TAP
Silicom’s 10 Gigabit Ethernet content aware director Provides intelligent packet redirection capability where all packets are directed to the other port (Bypassed) and rules specify which packets are copied to the host system (TAP).

DBI2

Figure 2: Content Aware TAP Functional Block Diagram


Figure 2 illustrates functional block diagram of content aware TAP:

Packets received in port A and meet rule are directed to ports B and C (TAP), other packets are directed to port C (Bypass).

Packets received in port C and meet rule are directed to ports D and A (TAP), other packets are directed to port A (Bypass).



Director - Content Filtering NIC

Silicom’s 10 Gigabit Ethernet content aware provides intelligent packet redirection capability where rules specify which packets are directed to the host or dropped.

DBI3

Figure 3: Content Aware Filtering NIC Functional Block Diagram



Figure 3 illustrates functional block diagram of content aware TAP:

Packets received in port A and meet rule, direct to port B. Packets received in port A and do not meet rule are dropped.

Packets received in port C and meet rule, direct to port D. Packets received in port C and do not meet rule are Dropt.



Director - Load balancing

Silicom’s 10 Gigabit Ethernet content aware director provides a load balancing of the traffic coming from the 4 x 10G external ports (0,2,4 and 6). The traffic is balanced, based on a defined hash configuration (5 tuple or other), to the 4x 10G internal interfaces ( 1,3,5 and 7)that are going to the host.

Intelligent Block1



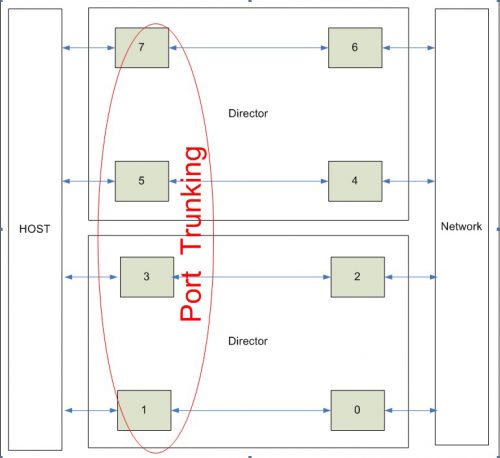

Figure 4: Load Balancing Functional Block Diagram

Figure 4 illustrates functional block diagram of Load Balancing:

Packets received in the 4 x 10G external ports (0,2,4 and 6) to be balanced based on a defined hash configuration (5 tuple or other), to the 4x 10G internal interfaces (1,3,5and 7) that are going to the host. If there is external port that is heavily loaded the traffic will go into the 4 internal interfaces with balanced load. An ISL tag is added to all incoming packets , it enable the host to know the source port, packest that are sent back from the host are striedp from the ISL tag.


Tagged In-Line rule aware mode

Silicom’s 10 Gigabit Ethernet content aware director Provides intelligent packet redirection capability where rules specify which packets are directed to the host system and which packets are directed to the other ports (Bypass) but at the same time it will get these bypassed trfic into the host with a ISL tag marking that these packets are bypassed, per the rules that the host will issue to the Silicom’s 10 Gigabit Ethernet content aware director.

Intelligent Block2

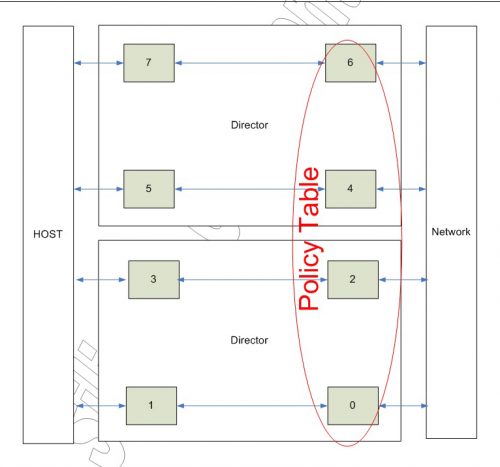

Figure 5: Tagged In-Line rule aware mode Block Diagram

Figure 5 illustrates functional block diagram of Tagged In-Line rule aware mode:

Port Group (0, 1), (2, 3), (4, 5), (6, 7) configured as VLAN groups.
Packets received in the 4 x 10G external ports (0, 2, 4 and 6) and meet and are directed to the other ports of the Vlan group with ISL tag that notify that match found. The original packet is sent to the “Output Port of Switch” in the rule matched policy
Packets received in the 4 x 10G external ports (0,2,4 and 6) and do not meet the rule are directed to the other ports of the Vlan group taged with ISL tag that notify that no-match found.


Director: Rules Classification and capabilities

Director Capabilities

The Redirector supports the following capabilities:

  • Maximum total number of rules is 16K
  • Each of the 16K rules can be defined to any port the on board multi-layer switch
  • Each rule refers to incoming packet
  • Rules are executed per order. First rule that matches will be executed
  • Rules can be added and removed on the fly
  • Each rule can include one or more classification fields. A rule match will be when all fields defined are match
  • Each field can have a bit masking to check part of the classification field
  • Per port statistics can be read, like packets count, errors, VLAN, and more
  • Rules and action are done in wire speed at any packet size

Rules classification fields

Rules classification is done based on the first 128 bytes of the packets. The following list provides rules classification fields

  • MAC address, source & destination
  • IPv4 – source & destination IP
  • IPv6 – source & destination IP
  • L4 Port – source & destination port
  • Ethernet Protocol – ethertype
  • IP Protocol num
  • VLAN ID tagging
  • User defined fields
  • DSCP – match the different services code point – the six most significant bits of the Type of Service octet (IPv4) or Traffic Class octet (IPv6).*
  • IPv6 Flow Label*
  • IP length*
  • ISL Frame Type*
  • ISL USER*
  • Source & destination port range*
  • VLAN priority*
  • VLAN tag type*
  • TCP flags*
  • TOS – match Type of Service octet (IPv4) or Traffic Class octet (IPv6)*
  • TTL field in a IPv4 header or Hop Limit in a IPv6 header*
  • *Future SW supports

Execution per rule

The following Executions per rule are supported:

  • Drop – when a rule matches the packet will be dropped
  • Redirect – when a rule matches redirect the packet to the defined destination port
  • Mirror – when a rule matches copy packet also to a defined destination port

Director Advanced Features:

  • Port trunking between the different Intel 10G ports to the Fulcrum 10G ports connected to it for load balancing between the different Intel ports
  • Port trunking between the different External Fulcrum port to the external switch connected to it for load balancing between the different external ports
  • Session balancing with L3/L4 hashing or other mechanism
  • ISL (Inter Switch Link) Tagging per port can be added to the packets per configuration
  • ISL Tagging can be removed and can be forward to specific port per the ISL index
  • Quality of Service support with the following features:
  • Priority levels: 16 internal "switch" priorities, 8 or 16 VLAN priorities (optional use of CFI bit as an extra VLAN priority bit)
  • Arbitrary mapping of ingress VLAN priority to an internal VLAN priority
  • Arbitrary mapping of an internal VLAN priority to egress VLAN priority
  • Arbitrary mapping of internal VLAN priority to switch priority
  • Arbitrary mapping of DSCP to switch priority, configurable priority source selection
  • Scheduler: 8 traffic classes, arbitrary mapping of switch priorities to traffic class, deficit weighted round-robin or strict priority
  • Notification: Two congestion notifications can be supported
  • Virtual output queue congestion notification (VCN) and Intel proprietary backward congestion notification (FCN)
  • Open Flow support (consistent with OpenFlow protocol standard)
  • sFlow support
  • User defined Packet transmission with two optional modes: 1. Simple mode - transmit on specific port. 2. Switched mode - where switch determines destination port/ports, or with specific information such as
  • whether or not egress processing rules should be applied
  • Storm Control Management - Switch can support a variety storm controller. Each storm controller can be programmable to define rat, condition (like unicast ICMP frames whose TTL is at most 1), frame type (can be
  • OR’ed), ingress & egress port ports. Actions: do nothing, drops frames to port (according to filter)

*Future SW supports

Bypass / Disconnect

Silicom’s Bypass adapter supports the following mode states: Normal/inline, Bypass/Fail-To-Wire and Disconnect modes.

Normal/Inline mode

In Normal mode, the ports are independent interfaces (see Figure 6: Normal mode, one Bypass pair is illustrated).

DBI4

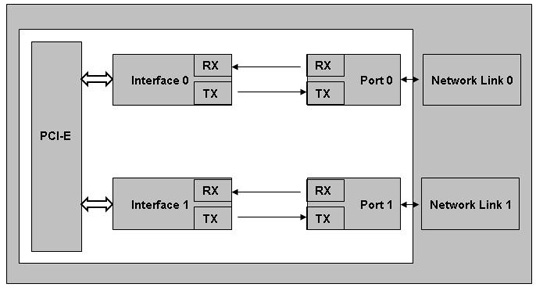

Figure 6: Normal Mode Functional Block Diagram

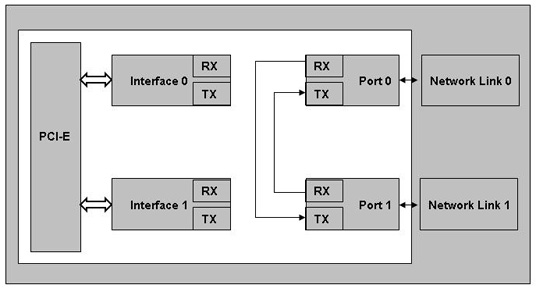

Bypass/Fail-To-Wire mode

In Bypass mode, the connections of the Ethernet network ports are disconnected from the interfaces and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. The connections of the interfaces are left unconnected. (See Figure 7: one Bypass pair illustrated)

DBI5

Figure 7: Bypass Mode Functional Block Diagram

Disconnect mode

In Disconnect mode, the transmit connections of the interfaces are disconnected from the ports. The switch / router connected to the adapter does not detect link partner (See Figure 8):

DBI6

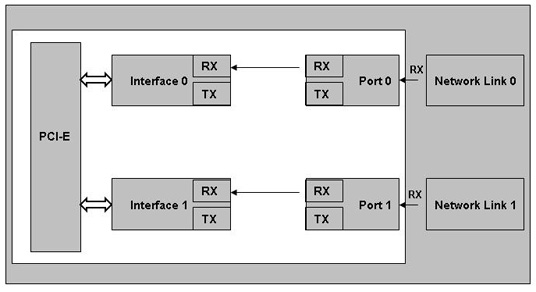

Figure 8: Disconnect Mode Functional Block Diagram

Bypass/Disconnect Features:
Silicom’s Bypass server adapter supports software programmable to select Normal, Bypass or Disconnect modes. Silicom’s Bypass adapters supports Disable Bypass, Disable Disconnected capabilities; hence, if those adapters receive Disable Bypass capability / Disable Disconnect commands, the adapter does not Bypass / does not Disconnect its Ethernet ports, The Disable Bypass Capabilities are reserved also after power off. This feature enables to emulate a standard NIC.

Key Features:

  • All modes of operation are fully software configured with a well-defined and easy to use API
  • Disable bypass/Disconnect for a standard NIC emulation and operation, retained even with power cycle
  • Range of Watchdog timer timing, configurable for detecting appliance failure
  • Watchdog timer reset function by application or self-reset by the product bypass driver
  • Easy to read product status and product features capabilities
  • Fast switching between mode with less than 10mS of transit time
  • Compatible with all Silicom bypass products, one driver set and command set for all products



PE310G4DBIR-T Intel® FM10420 Based

Quad Port Copper 10 Gigabit Ethernet PCI Express Content Director Server Adapter

P/N

Description

Notes

PE310G4DBIR-TQuad port Copper 10 Gigabit Ethernet PCI Express Content Director Server AdapterRoHS Compliant,
X8 Gen 3,
based on Intel FM10420



1V3

FacebookTwitterLinkedIn
YouTube Channel
