PE2G6SFPI35

Six Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

Silicom’s Six Port SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X8 network interface card that contains six Gigabit SFP ports on a PCI-Express adapter.

Silicom’s Six Port SFP Gigabit Ethernet PCI-Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

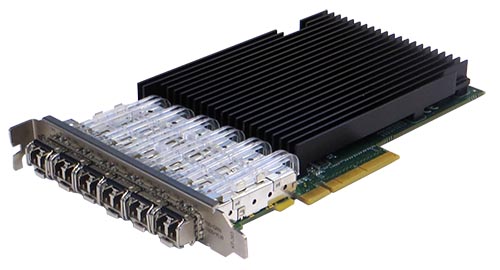

PE2G6SFPI35 Server Adapter

Silicom’s Six Port SFP Gigabit Ethernet PCI Express Server adapter is based on Intel i350AM4 Quad port Gigabit Ethernet MAC+PHY and Intel i350AM2 Dual port Gigabit Ethernet MAC+PHY of Intel Controller.

The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).

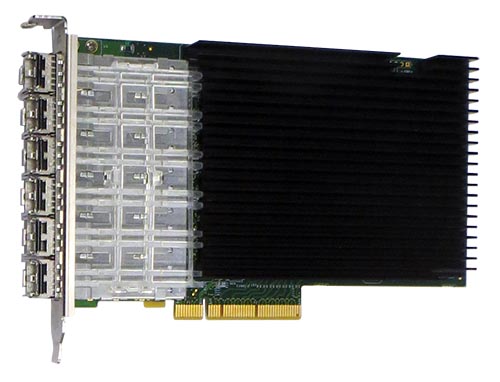

PE2G6SFPI35 Gigabit Server Adapter

PE2G6SFPI35

Six Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

Performance Features:

  • 8 Transmit and 8 Receive queues per port.
  • Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
  • Support PCI-SIG Single-Root I/O virtualization Rev 1.1
    • Support for up to 8 virtual function (VFs)
    • Partial replication of PCI Configuration space
  • Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA)
  • Support Intel I/O Acceleration Technology v3.0
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • UDP, TCP and IP checksum offload
  • UDP and TCP transmit segmentation offload (TSO). machine
  • SCTP receive and transmit checksum offload
  • Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
  • EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods

SFP Gigabit Ethernet:

  • Gigabit Ethernet Adapters with SFP cage support:
  • 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
  • 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
  • 1000Base-T (1000Mbit/s) Copper Gigabit Ethernet with 1000Base-T SFP transceiver
  • Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
  • Optional SGMII mode (future support)

Common Key features:

  • Support PCI Express Base Specification 2.1 (5 GTs)
  • High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers
  • Ultra deep, packet buffer per channel lowers CPU utilization
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
  • Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging
  • Jumbo Frame (9.5KB)
  • 802.x flow control
  • Multicast/ broadcast Packet replication
  • Supports Vital Product Data (VPD)
  • LEDs indicators for link/Activity status

PE2G6SFPI35

Six Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

SFP Gigabit Ethernet Technical Specifications (SFP) Adapters:

SFP (Small Form Factor Pluggable) supports: 1 Gbit SERDES interfaces supports 1000Base-X in order to connect with SFP to 1000Base-SX / 1000Base-LX / 1000Base-T SFP transceivers.
IEEE Standard / Network topology:
with 1000Base-T SFP
Gigabit Ethernet (1000Mbit/s only), 1000Base-T
IEEE Standard / Network topology:
with 1000Base-SX SFP
Fiber Gigabit Ethernet, 1000Base-SX (850nM)

Operating Systems Support

Operating system support: Linux
Windows
FreeBSD
VMware

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 2.1 (5 GTs)
Board Size:  Standard height short add-in card: 167.64mm x 111.15mm (6.6”X 4.376”)
PCI Express Card Type: X8 Lane / Gen2 5GTps
PCI Express Voltage: +12V +/- 8%
PCI Connector: Gold Finger: X8
Controller:  Intel i350AM4 and Intel i350AM2
Weight: 210 gram (7.4 oz)
Power Consumption: 12W, 1 A at 12V: Typical all ports operate at 1000 BASE-LX
11.4 W, 0.95 A at 12V: No links in all ports operate with LX transceivers
10.44 W, 0.87 A at 12V: Typical all ports operate at 1000 BASE-SX
9.84 W, 0.82 A at 12V: No links in all ports operate with SX transceivers
15.24 W, 1.27 A at 12V: Typical all ports operate at 1000 BASE-T
8.4 W, 0.7 A at 12V: No links in all ports operate at 1000 BASE-T
7.08 W, 0.59 A at 12V: Without transceivers
Holder: Metal Bracket: Full Height
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
MTBF: 105 (Years)
*According to Telcordia SR-332 Issue 1
Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature – 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components

LEDs

LEDs: (2) LEDs per port
Link/Act LED :
Turns on link (Green),
Blinks on activity (Green)
Link Speed LED:
Turns on Yellow 1G Link.
Turns on Green 100M Link (optional for SGMII mode)
LEDs location: LEDs are located on the PCB, visible via holes in the metal bracket. Each Green Link/Act and Bi-color Link Speed LEDs are located above their own SFP connector port by light pipes
Connectors: Small Form Factor Pluggable (SFP) Cage

PE2G6SFPI35

Six Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

P/N

Description

Notes

PE2G6SFPi35-R Six Port SFP Gigabit Ethernet PCI Express Server Adapter X8, PCI Express Gen2, Based on Intel i350, standard height, short PCI



-R: RoHS Compliant / Lead free adapter

1V2
