PE310G2I50-T

Dual Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® X550-AT2 Based

Silicom’s 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end network appliances. The Silicom 10 Gigabit Ethernet PCI Express Server adapter offers simple integration into any PCI Express X4 to UTP 10GBase-T Gigabit Networks.

The Silicom’s 10 Gigabit Ethernet PCI Express server adapters are based on Intel X550. The Intel X550 10 Gigabit Ethernet controller includes two fully integrated Ethernet Media Access Control (MAC) and two fully integrated 10GBASE-T copper PHYs.

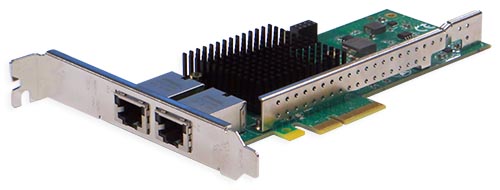

PE310G2i50-T server adapter

The Intel X550 10 Gigabit Ethernet controllers includes hardware acceleration that can offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

Silicom’s 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

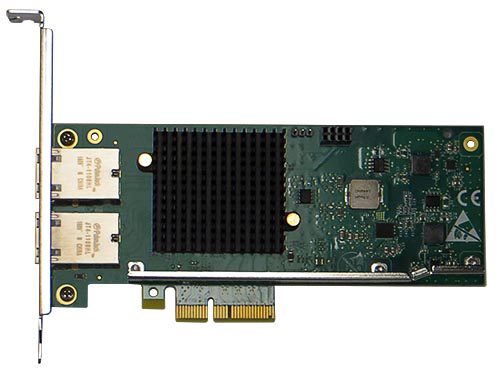

PE310G2i50-T nic

PE310G2I50-T

Dual Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® X550-AT2 Based

Copper 10 Gigabit Ethernet 10GBASE-T:
Integrated 10 Gigabit Copper PHY supports 10GBASE-T, 1000 BASE- T and 100BASE- TX
Triple speed 10Gbps (10GBase-T), 1000Mbps (1000Base-T) and 100 Mbps (100Base-Tx)
RJ-45 connector supports CAT 6A cable
Performance Features:
Support for jumbo frame up to 15.5KB
Flow control support
Statistics management and RMON
802.1q VLAN support
TCP segmentation offload: up to 256KB
IPV6 Supports for IP/ TCP and IP/UDP Receive Checksum offload
Fragmented UDP checksum offload for Packet Reassembly
Message Signal interrupts ( MSI)
Message Signal interrupts (MSI-X)
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Multiple Receive Queues ( RSs) 8×8 & 16×4
128 Transmit queues
Support for 64 Virtual Device Queues (VMDq) per port
Support Direct Cache Access ( DCA)
Large on chip receive packet buffer (384 KB)
Large on chip transmit packet buffer (160KB)
Host Interface:
PCI Express X4 lanes
Support PCI Express Base Specification 3.0 (8GT/s)

PE310G2I50-T

Dual Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® X550-AT2 Based

10GBASE-T Copper Ethernet Adapters Technical Specifications

IEEE Standard / Network topology: Copper 10Gigabit Ethernet, 10GBASE-T, IEEE 802.3an
Gigabit Ethernet, 1000Base-T
100 Mb Ethernet : 100BASE- TX
Data Transfer Rate: 20 Gb/s, 2000Mb/s and 200 Mb/s in full duplex mode per port
Cables and Operating distance: 10GBase-T Category 7 Full reach maximum 100m
10GBase-T Category 6A Full reach maximum 100m
10GBase-T Category 6A Short reach maximum 30m
10GBase-T Category 6 maximum 55m
10GBase-T Category 5e maximum 1m
1000Base-T Category 5E Full reach maximum 100m
100Base-Tx Category 5E Full reach maximum 100m

Operating Systems Support

Operating system support: Windows
Linux

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 3.0 (8GT/s)
Board Size: Low profile add-in card: 152.4 mm X 68.91mm (6.0”X 2.713”)
PCI Express Card Type: X4 Lane
PCI Express Voltage: +12V +- 8%
PCI Connector: Gold Finger: X4 Lane
Controller: Intel X550-AT2
Holder: Metal Bracket
I/O: RJ45
Weight: 110gr (3.880 oz)
Power Consumption: 8.16 W, 0.68 A at 12V: Typical all ports operate at 10Gb/s
5.4 W, 0.45 A at 12V: Typical all ports operate at 1Gb/s
3.72 W, 0.31 A at 12V: Typical all ports operate at 100Mb/s
4.62 W, 0.385 A at 12V: Typical No link at all ports
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC 47CFR Part 15:2016, Subpart B Class B
Conducted emissions
Radiated emissions
VCCI-CISPR 32: 2016, Class B
Conducted emissions
Radiated emissions
EN 55032: 2012+ AC(13), Class B
Conducted emissions
Radiated emissions
EN 61000-3-2: 2014
Harmonic current emissions
EN 61000-3-3: 2013
Voltage fluctuations and flicker
EN 55024: 2010
Immunity to electrostatic discharge (ESD)
Radiated immunity to radio frequency electromagnetic field
Conducted immunity to electrical fast transients / bursts (EFT/ B)
Conducted immunity to voltage surges
Conducted immunity to disturbances induced by radio frequency field
Conducted immunity to voltage dips and short interruptions
MTBF: 239 (Years)
*According to Telcordia SR-332 Issue 1
Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature – 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components

LEDs

LEDs: (2) LED per port
Speed LED (Left):
Link 100Mb/s: Turn off
Link of 1Gb/s: Turns on link (yellow)
Link of 10Gb/s: Turns on link (green)
Link /ACT LED (Right) :
Turns on link , blinks on activity (green)
LEDs location: LEDs are located in the RJ45 connector port
Connectors: (2) Shielded RJ-45
