Programmable FPGA Server Adapter

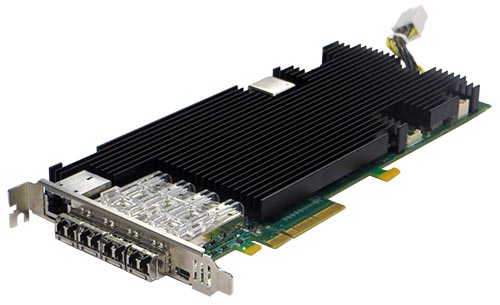

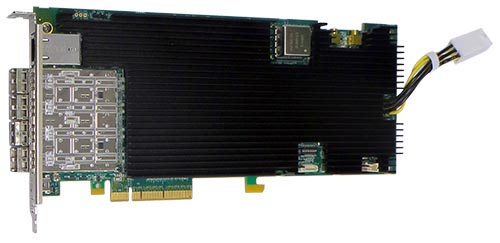

PE310G4TSF4I71

Quad Port SFP+ 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter Intel® Based

Silicom’s 40 Gigabit Ethernet PCI Express Time Stamping server adapter is designed for high-precision time-stamping of Ethernet frames with wire speed network performance.

The Silicom’s 40 Gigabit Ethernet PCI Express Time Stamping server adapter is based on a standard Intel XL710 controller, Silicom’s hardware based 4ns resolution precision time stamping and NTOP/Silicom DNA (Direct NIC Access) acceleration driver.

The Silicom’s 40 Gigabit Ethernet PCI Express Time Stamping server adapter unique architecture leverages capabilities of a standard Intel controller to enable time stamping of every packet in wire speed.

The Silicom’s 40 Gigabit Ethernet PCI Express Time Stamping server adapter offers the simplest integration into any monitoring device due to the use of the standard Intel XL710 Network controller with all it features as a leading controller in the market, with the addition of the time stamp capabilities added to it and with the DNA accelerating driver for Monitoring applications.

PE310G4TSF4I71

Quad Port SFP+ 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter Intel® Based

Key Features:

  • On board hardware Time Stamp Engine insertion for of every received packet
  • On board precision OCXO oscillator of 25MHz / 0.1PPM
  • 4nS time stamp resolution
  • UTC format via synchronization to host OS: GPS or PTP1588v2
  • Micro USB connector in front of the card for input external 1PPS clock source and output 1PSS clock
  • MCX connectors on board input and output 1PPS clock for chain connections from/to other server adapter
  • Based on a standard Intel MAC controller using all its features
  • Based on NTOP/Silicom DNA acceleration driver
  • Supports line rate packet processing for any packet size
  • Supports Hardware based merged mode
  • Supports packet re-ordering utilized by the DNA driver
  • Supports merged or independent mode done by DNA driver
  • In merged mode, received packets from both ports are inserted into a single DMA host buffer in the order in which they were received, done with DNA driver
  • Supports Intel XL710 MAC controller features without any limitation
  • Supports PTP1588v2 synchronization via Intel WGI210AT Ethernet Controller
  • SHPDK software uses time stamp data in order to provide time information descriptor for upper application use
  • Supports full 64 bit Time Stamp mode
  • Thermal sensors monitors on board

SFP+ 10Gigabit Ethernet:

  • -SR: Fiber 10 Gigabit Ethernet 10GBASE-SR
    • 10BASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+)
  • -LR: Fiber 10 Gigabit Ethernet 10GBASE-LR
    • 10BASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+)

Host Interface:

  • Support PCI Express Base Specification 3.0 (8GT/s) X8 lanes

Copper Gigabit Ethernet 1000Base-T (PTP port):

  • Support 100m CAT-5 Ethernet cable
  • RJ-45 Connector integrated magnetics with LEDs
  • Auto MDI-X feature

Performance Features:

  • IPv4 and IPv6 Supports for IP/TCP and IP/UDP Receive Checksum offload
  • Fragmented UDP checksum offload for Packet Reassembly
  • CPU utilization- the XL710 supports reduction in CPU utilization, mainly by supporting Receive Side Coalescing (RSC)
  • Support for 128 virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA)
  • Priority Flow Control (draft IEEE 802.1Qbb)
  • Enhanced Transmission Selection (draft IEEE802.1az)
  • Supports Virtual Ethernet Bridge (EVB) as defined in the IEEE P802.1Qbg specification
  • Advanced memory architecture reduces latency by preceding Transmit Segmentation Offload (TSO) packets. A TSO packet may be interleaved with other packets going to the wire
  • Minimized device I/O intterupts using MSI and MSI-X
  • Offload of TCP/IP/UDP checksum calculation and TCP segmentation
  • Large on chip receive packet buffer (968 KB)
  • Statistics Reports: Physical Ports, Virtual Switch elements, FCoE statistics are collected per PCI function, RFC2863
  • Configurable Packet Filtering
  • Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • 1PPS Clock recovery
  • HW and SW Time Stamp Compensation engine

LAN Features:

  • IEEE 802.x flow control support
  • IEEE 802.1q VLAN tagging support
  • L2 Tag Handling and Software Based Tag Insertion
  • IEEE 802.1p layer 2 priority encoding
  • Jumbo Frame (up to 9.5KB)
  • RFC2819 RMON MIB statistics
  • TCP Segmentation Offload Up to 256KB
  • Transmit L3 and L4 Integrity Offload
  • Ethernet CRC Insertion and Striping

PE310G4TSF4I71

Quad Port SFP+ 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter Intel® Based

SFP+ 10Gigabit Ethernet Technical Specifications Adapters

SFP+ (Small Form Factor Pluggable) supports: SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with SFP+ to 10GBase-SR/LR
10GBase-SR SFP+:
IEEE Standard / Network topology
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
10GBase-SR SFP+:
Data Transfer Rate :
10.3125GBd
10GBase-SR SFP+:
Cables and Operating distance Up to
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
10GSFP+Cu :
IEEE Standard / Network topology
Copper 10Gigabit Ethernet, 10GSFP+Cu (Direct Attach)
10GSFP+Cu :
Cables and Operating distance Up to
10m
10GBase-LR SFP+:
IEEE Standard / Network topology
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
10GBase-LR SFP+:
Data Transfer Rate:
10.3125GBd
10GBase-LR SFP+:
Cables and Operating distance Up to
Single-Mode: 10000m at 9um

– SR: Fiber 10GBASE-SR Ethernet Technical Specifications

Output Transmit Power: Typical: -2.39 dBm
Minimum: -5 dBm
Optical Receive Sensitivity: Typical: -14.32 dBm
Maximum: -11.1 dBm
Maximum Input Power: Maximum: +0.5dBm

– LR: Fiber 10GBASE-LR Ethernet Technical Specifications

Output Transmit Power: Typical: -1.77 dBm
Minimum: -8.2 dBm
Optical Receive Sensitivity: Typical: -17 dBm
Maximum: -12.5 dBm
Maximum Input Power: Maximum: +0.5dBm

Copper Gigabit Ethernet Technical Specifications (PTP Port)

IEEE Standard / Network topology Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T
Full duplex / Simplex Support both Simplex & Full duplex operation in all operating speeds
Auto negotiation Auto-negotiation between Full duplex and simplex
operations and between 10Mb/s 100Mb/s speeds and duplex
1000Mb/s
Data Transfer Rate 1000 Mb/s, 100 Mb/s and 10 Mb/sec in simplex mode.
2000Mb/s 200 and 20 Mb/s in full duplex mode
Cables and Operating distance 10Base-T Category 3, 4, or 5 maximum 100m
100Base-Tx Category 5 maximum 100m
1000Base-T Category 5E maximum 100m

Operating Systems Support

Operating system support: Linux
FreeBSD
Windows

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 3.0 (5GT/s)
Board Size: Standard height : 241.3 x 111.15mm (9.5” x 4.376”)
PCI Express Card Type: X8 Lane
PCI Express Voltage +12V +/- 8
PCI Connector: X8 Lane
Controller: Intel FTX710AM1, Intel WGI210AT
Holder: Metal Bracket
Power Consumption (PE310G4TSF4I71-SR): 32.1W 2.675A at 12V: Typical, all ports operate at 10Gb/s.
24.5W 2.040A at 12V: Typical, No link
Power Consumption (PE310G4TSF4I71-LR): 32.4W 2.7A at 12V: Typical, all ports operate at 10Gb/s.
27.38W 2.282A at 12V: Typical, No link
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

LEDs

LEDs: SFP+ Ports:
Two LEDs per port.
Link /ACT: Turns on link, blinks on activity (Green).
Link Speed: Turns on for 10Gbps speed (Blue).
PTP Port (RJ-45):
Two LEDs.
Link/ACT: Turns on link, blinks on activity (Green).
Speed: Turns on 100 Mbit/s link (Green).
Turns on 1000 Mbit/s link (Yellow)
LEDs location: SFP+ Ports :
LEDs are located on the PCB, visible through light pipes above the SFP+ cage. (See Appendix A)
PTP Port (RJ-45):
Integrated LEDs in RJ-45 connector. (See Appendix A)
Connectors: (1) Press-fit 1×4 SFP+ cage.
(2) On board MCX connectors (1PPS clocks input and output).
(1) On Front Metal Bracket Mini-USB connector Type B (1PPS clocks input and output) for cable adapter USB to Female 2xSMA.
(1) Shielded RJ-45

PE310G4TSF4I71

Quad Port SFP+ 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter Intel® Based

P/N

Description

Notes

PE310G4TSF4I71-XR Quad Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter Time Stamp Server Adapter X8 Gen3, Based on Intel XL710 w/ Time Stamp Engine
with PTP RJ45 GBE, 9.5″ length (3/4) , standard height.
Support Direct Attached Copper cable, Support Silicom SFP+ approved transceiver.
RoHS compliant
PE310G4TSF4I71-SR Quad Port Fiber (SR) 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter X8 Gen3, Based on Intel XL710 w/ Time Stamp Engine
with PTP RJ45 GBE, 9.5″ length (3/4) , standard height
on board support for Fiber SR. RoHS compliant
PE310G4TSF4I71-LR Quad Port Fiber (LR) 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter X8 Gen3, Based on Intel XL710 w/ Time Stamp Engine,
with PTP RJ45 GBE, 9.5″ length (3/4) , standard height
on board support for Fiber LR. RoHS compliant
