PE210G2TSI9

Dual Port 10 Gigabit Server Adapter with Precision Time Stamping Intel® 82599EB Based

Silicom’s 10 Gigabit Ethernet PCI Express Time Stamping server adapter is designed for high-precision time-stamping of Ethernet frames with wire speed network performance.

The Silicom’s 10 Gigabit Ethernet PCI Express Time Stamping server adapter is based on a standard Intel 82599 controller, Silicom’s hardware based 8ns resolution precision time stamping and NTOP/Silicom DNA (Direct NIC Access) acceleration driver.

The Silicom’s 10 Gigabit Ethernet PCI Express Time Stamping server adapter unique architecture leverages capabilities of a standard Intel controller to enable time stamping of every packet in wire speed.

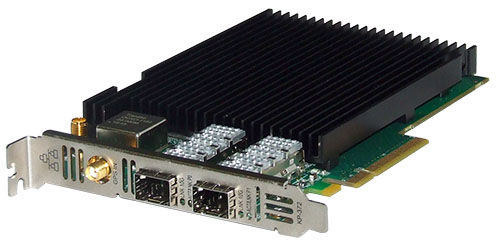

PE210G2TSi9 10G Networking Time Stamp Card

The Silicom’s 10 Gigabit Ethernet PCI Express Time Stamping server adapter offers the simplest integration into any monitoring device due to the use of the standard Intel 82599 Network controller with all it features as a leading controller in the market, with the addition of the time stamp capabilities added to it and with the DNA accelerating driver for Monitoring applications.

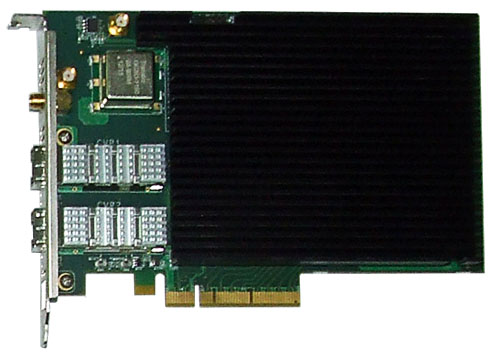

PE210G2TSi9 10G Time Stamp Card

PE210G2TSI9

Dual Port 10 Gigabit Server Adapter with Precision Time Stamping Intel® 82599EB Based

Key Features:

  • On board hardware time stamp engine insertion for of every received packet
  • On board precision oscillator of 25MHz / 0.02PPM
  • 8nS time stamp resolution
  • UTC format via synchronization to host OS: GPS or PTP1588v2
  • BNC connector for external 1PPS clock source
  • Based on a standard Intel MAC controller using all its features
  • Based on NTOP/Silicom DNA acceleration driver
  • Supports line rate packet processing for any packet size
  • Supports packet re-ordering utilized by the DNA driver
  • Supports merged or independent mode done by DNA driver
  • In merged mode, received packets from both ports are inserted into a single DMA host buffer in the order in which they were received, done with DNA driver
  • Supports Intel 82599 MAC controller features without any limitation
  • Time Stamp modes:
    • 32/64 bit time stamp where 64 will be on each incremented second, to provide full time info
    • 32 bits time stamp at the end of the packet
  • DNA software uses time stamp data in order to provide time information descriptor for upper application use

PE210G2TSI9

Dual Port 10 Gigabit Server Adapter with Precision Time Stamping Intel® 82599EB Based

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision X8 / Gen 2.0 (5GT/s)
Board Size: Standard height short: 167.64mm x 109.1mm (6.6” X 4.296”)
Controller:  Intel 82599EB
Time Stamp Engine Silicom HW FPGA
HW Time stamp Add Time Stamp info into the End of the packet. No other change to the packet and its flow
Oscillator 25 MHz / 0.02PPM
Operating system support: Linux

PE210G2TSI9

Dual Port 10 Gigabit Server Adapter with Precision Time Stamping Intel® 82599EB Based

P/N

Description

Notes

PE210G2TSI9-SR Dual Port Fiber (SR) 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter X8 Gen2, Based on Intel 82599EB w/ Time Stamp Engine, short , standard height on board support for Fiber SR,RoHS compliant
PE210G2TSI9-LR Dual Port Fiber (LR) 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter X8 Gen2, Based on Intel 82599EB w/ Time Stamp Engine, short , standard height on board support for Fiber LR,RoHS compliant
PE210G2TSI9-XR Dual Port SFP+ 10 Gigabit Ethernet PCI Express Time Stamp Server Adapter X8 Gen2, Based on Intel 82599EB w/ Time Stamp Engine, short , standard height on board support for Direct Attached , RoHS compliant
