PXG2FI

Dual Port Fiber Gigabit Ethernet PCI-X Server Adapter Intel® 82546GB Based

This product has been discontinuedEOL Notification

The Silicom Gigabit Ethernet Servers adapters are 64-bit/133Mhz PCI-X network interface cards that contain six/ four/ two independent Gigabit ports on one PCI-X adapter.

Silicom Gigabit Ethernet Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Silicom Gigabit Ethernet Server adapters have an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.

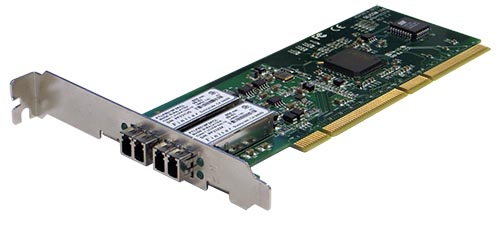

PXG2FI Server Adapter

Advanced Network Software Features

Silicom Gigabit Ethernet Server adapters supports advanced Networks software suite. The software suite includes increased fault tolerance, bidirectional load balancing, port aggregation, Jumbo Frame support, VLAN and server management Software for increased bandwidth, scalability, reliability and network availability.

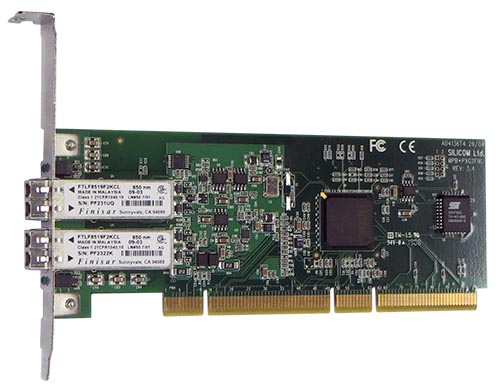

PXG2FI Network Server Adapter

PXG2FI

Dual Port Fiber Gigabit Ethernet PCI-X Server Adapter Intel® 82546GB Based

Fiber Gigabit Ethernet 1000Baes-SX:

  • Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-SX
  • Small Form Factor (SFF) LC Connectors

Common Key Features:

  • Host Interface standard support:
  • PCI v2.2 32/64 bit, 33/66Mhz
  • PCI-X v1.0 32/64-bit, 66/100/133MHz
  • High performance, reliability, and low power use in Intel 82546 dual integrated MAC + PHY / SERDES chip controller
  • Ultra deep, 64 KB packet buffer per channel lowers CPU utilization, avoids PCI-X congestion
  • Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
  • Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing:
  • Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
  • Switch and NIC Independent
  • Failover
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging
  • Jumbo Frame (16KB)
  • 802.x flow control
  • Boot ROM embedded or optional can be used for Boot ROM applications
  • PCI Power Management Interface. (v1.1)
  • PCI Hot Plug. (IBM, Compaq, Dell, and Microsoft)
  • Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
  • LEDs indicators for link/Activity/Speed status

PXG2FI

Dual Port Fiber Gigabit Ethernet PCI-X Server Adapter Intel® 82546GB Based

Fiber Gigabit Ethernet Technical Specifications - (1000Base-SX) Adapters:

IEEE Standard / Network topology:Fiber Gigabit Ethernet, 1000Base-SX (850nM)
Data Transfer Rate: 2000Mbit/s in full duplex mode per port
Cables and Operating distance:Multimode fiber:
220m at 62.5 um
550m at 50 um
Optical Output Power:Typical: -6 dBm
Minimum: -9.5 dBm
Optical Receive Sensitivity:Typical: -21 dBm
Maximum: -17 dBm

Operating Systems Support

Operating system support: Windows
Netware
Linux
FreeBSD
Unix
Solaris
VMware

General Technical Specifications

Interface Standard:PCI v2.2 32/64 bit, 33/66Mhz
PCI-X v1.0 32/64-bit, 66/100/133MHz
Board Size: PCI Short add in Card 168mm x 64mm (6.6”x2.5”) detailed information: Appendix A
PCI Card Type:Universal 64 bit Card
PCI Voltage:+5V (Min 4.75V, Max, 5.25V)
PCI Connector: Universal 64 bit
Controller: Intel 82546GB
Holder:Metal Bracket
Weight:80 gram (2.82 oz)
Power Consumption:0.7A at 5V: Typical all ports operate at 1000Mbit/s
0.7A at 5V: Typical No link at all ports
Operating Humidity:0%–90%, non-condensing
Operating Temperature: 0°C – 50°C (32°F - 122°F)
Storage: -20°C–65°C (-4°F–149°F)
EMC Certifications: FCC Part 15, Subpart B Class B
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000
Harmonic Current Emissions
CE EN 61000 3-3
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
MTBF*:197 (Years)
*According to Telcordia SR-332 Issue 1
Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature - 25°C. Temperature rise of 10°C above the system ambient temperature was assumed for the cards components

LEDs

LEDs:(2) LEDs per port
Link: Turns on link (green)
ACT: Blinks on activity (green)
LEDs location:LEDs are located on the PCB, visible via holes in the metal bracket holder
Connectors:(2) LC connectors

PXG2FI

Dual Port Fiber Gigabit Ethernet PCI-X Server Adapter Intel® 82546GB Based

P/N

Description

Notes

PXG2FI-RoHSDual Port Fiber (SX) Gigabit Ethernet PCI-X Server AdapterRoHS Compliant, 82546GB controller
PXG2FI-LX-RoHSDual Port Fiber (LX) Gigabit Ethernet PCI-X Server AdapterRoHS Compliant, 82546GB controller
PXG2FI-ZXDual Port Fiber (ZX) Gigabit Ethernet PCI-X Server Adapter82546GB controller



Note: Specifications are based on PXG2FIK
-LP: Assemble Low Profile Metal Bracket:
