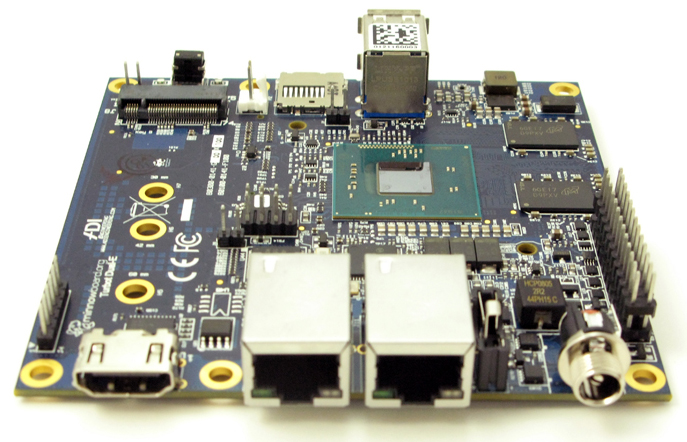

MinnowBoard Turbot Dual-Ethernet
Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot
This product has been discontinued – EOL Notification
- Dual Ethernet MinnowBoard for developers, makers, and OEMs
- CPU Options: E3826 1.46 GHz Dual Core, E3845 1.91 GHz Quad Core
- 2x Intel i211 Ethernet ports
- M.2 slot for SSD, Wi-Fi, or LTE, with Micro-SIM socket
- FCC and CE certified, OEM production quality
- Open-source under Creative Commons BY-SA 3.0
- Collateral will be posted to minnowboard.org
MinnowBoard Turbot Dual-Ethernet
Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot
General Technical Specifications |
|
| Form Factor | MinnowBoard compatible 99x103mm |
| CPU | Intel® Atom™ E3826 Processor (2 x 1.46 GHz, 1MB cache, 7W, AES-NI) Intel® Atom™ E3845 Processor (4 x 1.91 GHz, 1MB cache, 10W, AES-NI) |
| DRAM | 2GB DDR3L 1067MT/s, Memory down (non expandable) |
| Ethernet | 2x 1Gb Ethernet RJ45, based on Intel i211 |
| Video | Intel HD Graphics 1x HDMI output |
| Storage | 1x M.2 slot, with Micro-SIM 1x MicroSD |
| I/O Connectors | 1x USB 2.0 host 1x USB 3.0 host 8x buffered GPIO |
| Expansion Interface | MinnowBoard Max compatible Lure interface High-speed expansion connector Low-speed expansion connector |
| Console | Serial via FTDI cable |
| Boot Loader | TianoCore UEFI CoreBoot / SeaBIOS |
| Power | 5VDC via coaxial power jack (threaded locking connector) |
| Temperature | Fanless ambient operating temperature: 0-40C |
| Certifications | FCC Part 15 Class A CE Class A IEC-60950 RoHS/WEEE |
| Custom Configurations | Available subject to MOQ - Contact Us for details |
MinnowBoard Turbot Dual-Ethernet
Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot
P/N |
Description |
| 80300-0141-G00 | – Form Factor: 99×103 mm – E3826 CPU (2 x 1.46 GHz, 1MB cache, 7W, AES-NI) – 2GB DDR3L – 2x Gb Ethernet RJ45 – 1 x HDMI output – MicroSD – Serial debug – 1x USB 2.0 host – 1x USB 3.0 host – 8x buffered GPIO – HSE expansion connector – LSE expansion connector – FCC and CE Class A certified |
| 80300-0141-G01 | – Form Factor: 99×103 mm – E3845 CPU (4 x 1.91 GHz, 2MB cache, 10W, AES-NI) – 2GB DDR3L – 2x Gb Ethernet RJ45 – 1 x HDMI output – MicroSD – Serial debug – 1x USB 2.0 host – 1x USB 3.0 host – 8x buffered GPIO – HSE expansion connector – LSE expansion connector – FCC and CE Class A certified |
