RCC-VE Network Board

Intel® Atom C2000 x86 Network Board with 4 or 6 RJ45 GbE Ports

Silicom’s RCC-VE is a low cost Mini-IXT edge device based on the Intel Atom C2000 for OEMs taking intelligent, virtualized CPE, security, small cell, or other edge products to market.

With the support of the Intel Edge Cloud SDK, RCC-VE offers a comprehensive environment for rapid development of innovative virtualized applications and services at the network edge with reduced time to market.

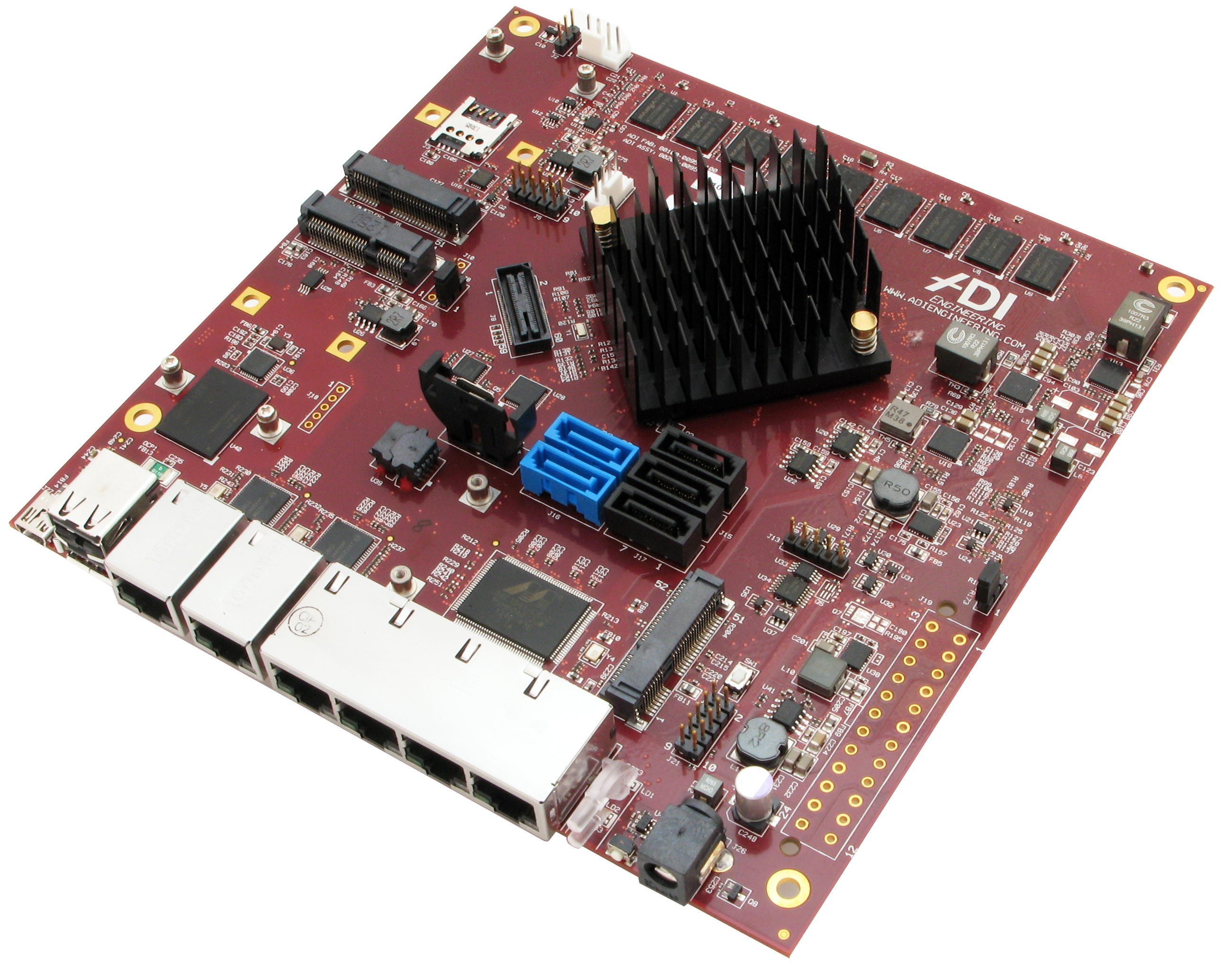

silicom rcc ve

RCC-VE Network Board

Intel® Atom C2000 x86 Network Board with 4 or 6 RJ45 GbE Ports

  • Intel Atom C2000 Board for NFV Edge, CPE, Wireless
  • Mini-ITX Form Factor (170x170mm)
  • 6x Intel 1Gb Ethernet
  • 2x mPCIe
  • mSATA
  • eMMC flash storage on board
  • Robust and Low Cost, Rapid OEM Customization

RCC-VE Network Board

Intel® Atom C2000 x86 Network Board with 4 or 6 RJ45 GbE Ports

General Technical Specifications

Form Factor Mini-ITX 170x170mm
CPU Intel® Atom™ C2358 (2x 1.7 GHz, 1MB cache, 7W, QuickAssist, AES-NI)
Intel® Atom™ C2558 (4x 2.4 GHz, 2MB cache, 15W, QuickAssist, AES-NI)
Intel® Atom™ C2758 (8x 2.4 GHz, 2MB cache, 20W, QuickAssist, AES-NI)
DRAM 2GB, 4GB, 8GB or 16GB DDR3L up to 1600MT/s, Memory down (not user expandable), optional ECC
Ethernet 2x RJ45 via Intel i211 + 4x RJ45 via Intel i354 on-chip (All SKUs except VE-xxx1)
2x RJ45 via Intel i211 + 4x SFP via Intel i354 on-chip (VE-xxx1 only)
Storage eMMC on-board: 4, 8, 16, 32, or 64GB
mSATA slot for expansion
I/O Connectors USB 2.0 host (2x)
Up to 2x SATA3
Up to 3x SATA2
MiniPCI Express 2x (1x with micro-SIM slot) (Not present on VE-xxx1 SKUs)
Console Serial over Mini-USB
Management On-board IPMI + NC-SI based board management controller (VE-xxx1 only)
Boot Loader CoreBoot / SeaBIOS
Power 12VDC via 2.5mm coaxial plug
Single ATX power input (VE-4860 and VE-8860)
Dual redundant 12V power inputs with automatic on-board failover switching (VE-xxx1 only)
20W max for board only, 40W including max peripheral power
Temperature Fanless operating temperature: 0-65C (2-core), 0-45C (4-core)
Fansink required for 8-core CPUs
Storage: -20-85C
Certifications FCC Part 15 Class B
CE Class B
IC Class A
IEC-60950
RoHS/WEEE

RCC-VE Network Board

Intel® Atom C2000 x86 Network Board with 4 or 6 RJ45 GbE Ports

P/N

Description

80300-0095-G02 – C2358 CPU (2x 1.7 GHz + QuickAssist, AES-NI)
– 4GB DDR3L
– 4x Gb Ethernet RJ-45
– 2x mPCIe
– 4GB eMMC
– Mini-USB console
– mSATA
– 2x USB 2.0 host
– 2.5mm power input jack
80300-0095-G13 – C2358 CPU (2x 1.7 GHz + QuickAssist, AES-NI)
– 4GB DDR3L
– 4x Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x USB 2.0 host
– 2.5mm power input jack
80300-0095-G03 – C2558 CPU (4x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– ATX power input connector
80300-0095-G08 – C2558 CPU (4x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– 2.5mm power input jack
80300-0095-G04 – C2758 CPU (8x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 64GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– ATX power input connector
