RCC Network Board

Intel® Atom C2000 x86 Network Board with 4 RJ45 GbE and 2 SFP+ 10GbE Ports

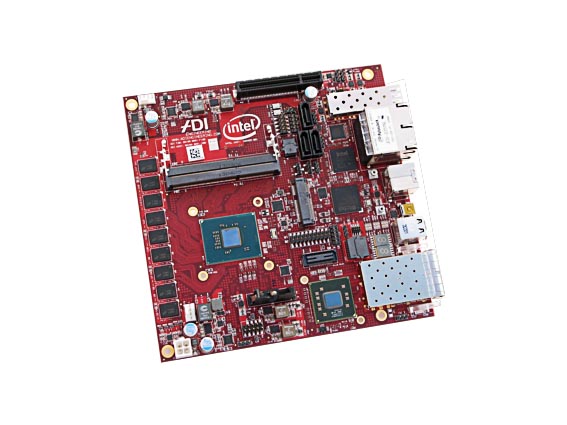

silicom rcc networking board
  • Intel Atom C2000 Board for NFV Edge, CPE, Wireless
  • Mini-ITX Form Factor (170x170mm)
  • 2x 10Gb Ethernet, 4x 1Gb Ethernet
  • PCIe
  • SATA
  • High-performance, Low Power

RCC Network Board

Intel® Atom C2000 x86 Network Board with 4 RJ45 GbE and 2 SFP+ 10GbE Ports

General Technical Specifications

Form Factor Mini-ITX 170x170mm
CPU Intel® Atom™ C2758 (8x 2.4 GHz, 2MB cache, 20W, QuickAssist, AES-NI)
DRAM 8GB or 16GB DDR3L 1600 MT/s with ECC, Dual channel. One channel memory down, one channel SO-DIMM
Ethernet 4x 1Gb Ethernet RJ45 via Intel i354 on-chip ; 1 port configurable RJ45 or SFP
2x 10Gb Ethernet SFP+ via Intel 82599 Niantic
Storage SATA2
mSATA slot for expansion
I/O Connectors USB 2.0 host (2x)
Up to 2x SATA3
Up to 3x SATA2
PCI Express Gen2 x8 slot
Console Serial over Mini-USB
Management Actel SmartFusion with telemetry over USB
Boot Loader AMI Aptio BIOS or CoreBoot / SeaBIOS
Power ATX power connector
20W max for board only, 40W including max peripheral power
Temperature Fanless operating temperature: 0-65C (2-core), 0-45C (4-core)
Fansink required for 8-core CPUs
Storage: -20-85C
Certifications FCC Part 15 Class B
CE Class B
IC Class A
IEC-60950
RoHS/WEEE

RCC Network Board

Intel® Atom C2000 x86 Network Board with 4 RJ45 GbE and 2 SFP+ 10GbE Ports

P/N

Description

80300-0093-G01 – C2758 CPU (8x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L with ECC
– 4x Gb Ethernet RJ-45 + 2x 10Gb Ethernet SFP+
– Mini-USB console
– PCIe Gen 2 x8 expansion slot
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– ATX power input
