RCC-DFF Network Board

Intel® Atom C2000 x86 Network Board with 2 RJ45 GbE Ports

Silicom’s RCC-DFF is a low cost Nano-IXT edge device based on the Intel Atom C2000 for OEMs taking NFV-enabled CPE, security, small cell, or other edge products to market.

With the support of the Intel Edge Cloud SDK, RCC-DFF offers a comprehensive environment for rapid development of innovative virtualized applications and services at the network edge with reduced time to market.

silicom rcc dff network board

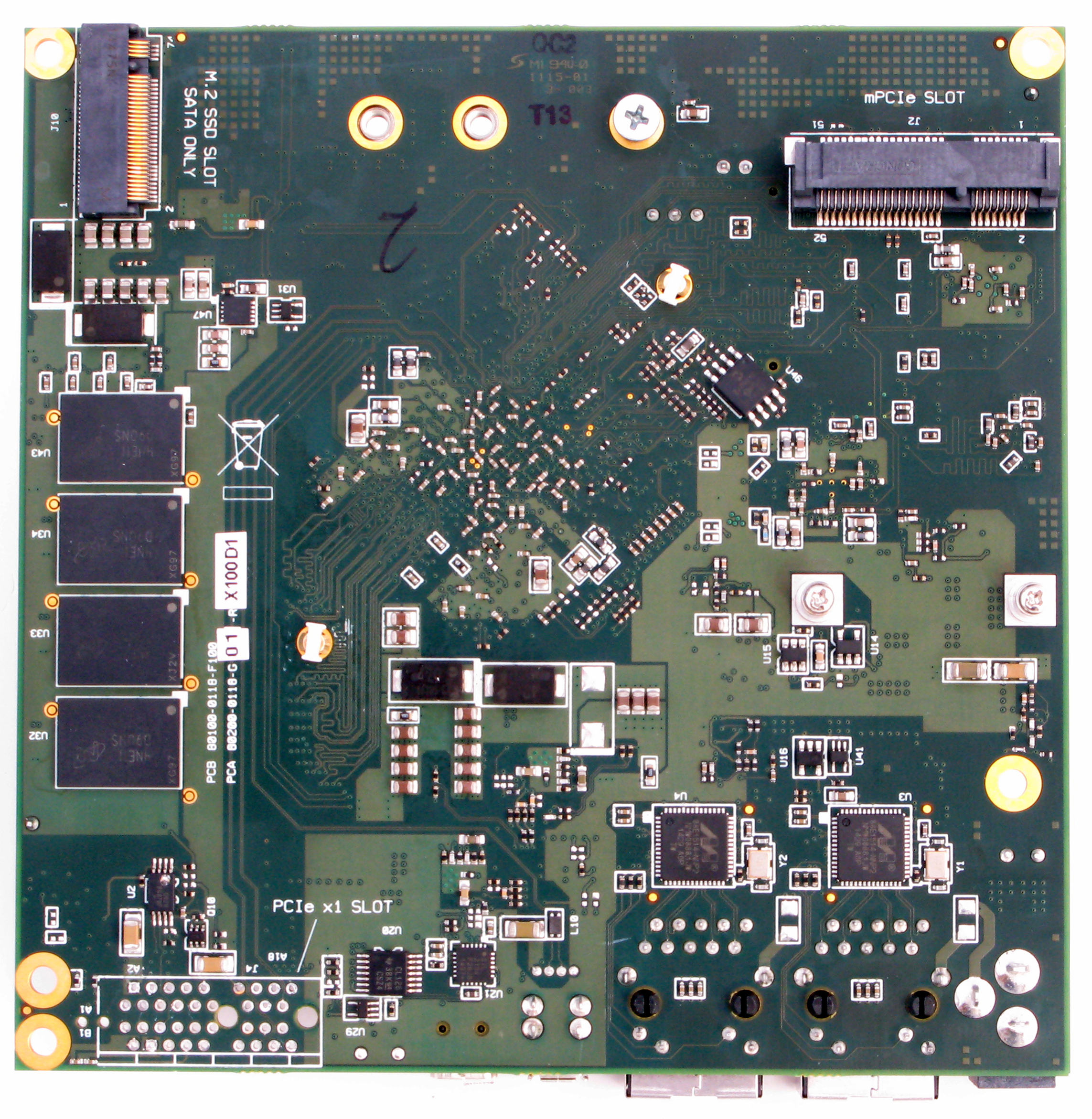

silicom rcc dff networking board

RCC-DFF Network Board

Intel® Atom C2000 x86 Network Board with 2 RJ45 GbE Ports

Key Features:

  • Intel Atom C2000 Board for NFV Edge, CPE, Wireless
  • Nano-ITX Form Factor (120x120mm)
  • 2x Intel 1Gb Ethernet
  • mPCIe
  • M.2
  • mSATA
  • eMMC flash storage on board
  • Robust and Low Cost, Rapid OEM Customization

RCC-DFF Network Board

Intel® Atom C2000 x86 Network Board with 2 RJ45 GbE Ports

General Technical Specifications

Form Factor Nano-ITX 120x120mm
CPU Intel® Atom™ C2338 (2x 1.7 GHz, 1MB cache, 7W, AES-NI)
Intel® Atom™ C2358 (2x 1.7 GHz, 2MB cache, 7W, QuickAssist, AES-NI)
Intel® Atom™ C2558 (4x 2.4 GHz, 2MB cache, 15W, QuickAssist, AES-NI)
DRAM 1GB, 2GB or 4GB DDR3L up to 1600MT/s, Memory down (non expandable)
Ethernet 2x 1Gb Ethernet RJ45 ports: Intel i354 on-chip
Storage eMMC on-board: 4, 8, 16, 32, or 64GB
mSATA slot for expansion
1x M.2 slot, Key M SATA only, 2230, 2242, 2260 lengths supported
I/O Connectors USB 2.0 host (1x)
MiniPCI Express full-length (with micro-SIM slot)
Console Serial over Mini-USB
Boot Loader CoreBoot / SeaBIOS
Power 12VDC via 2.5mm coaxial plug
6W for board only, 20W including max peripheral power
Temperature Fanless operating temperature: 0-65C
Storage -20-85C
Certifications FCC Part 15 Class B
CE Class B
IEC-60950
RoHS/WEEE

RCC-DFF Network Board

Intel® Atom C2000 x86 Network Board with 2 RJ45 GbE Ports

P/N

Description

80300-0118-G00 – C2338 CPU (2x 1.7 GHz, AES-NI)
– 2GB DDR3L
– 2x Intel Gb Ethernet RJ45
– 1x mPCIe
– 4GB eMMC
– Mini-USB console
– 1x mSATA
– 1x M.2
– 1x USB 2.0 host
